Ajax AutoComplete Textbox With Image Using jQuery UI in PHP

If you are using PHP as web development and have created a PHP-based website, you need a search function on your website. If you have then added the search list for automatic completion in this "Search" text box and have another function such as displaying images with this automatic search list. For this reason, you are adding advanced features to your website's user interface.

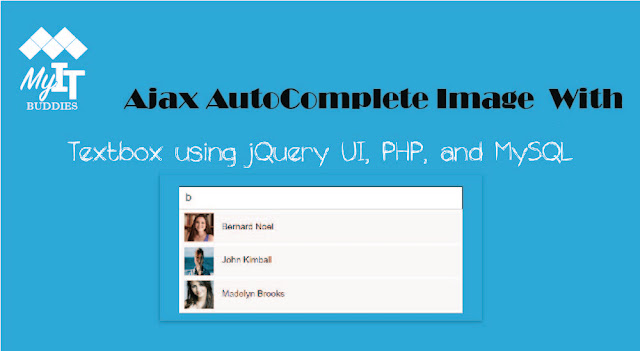

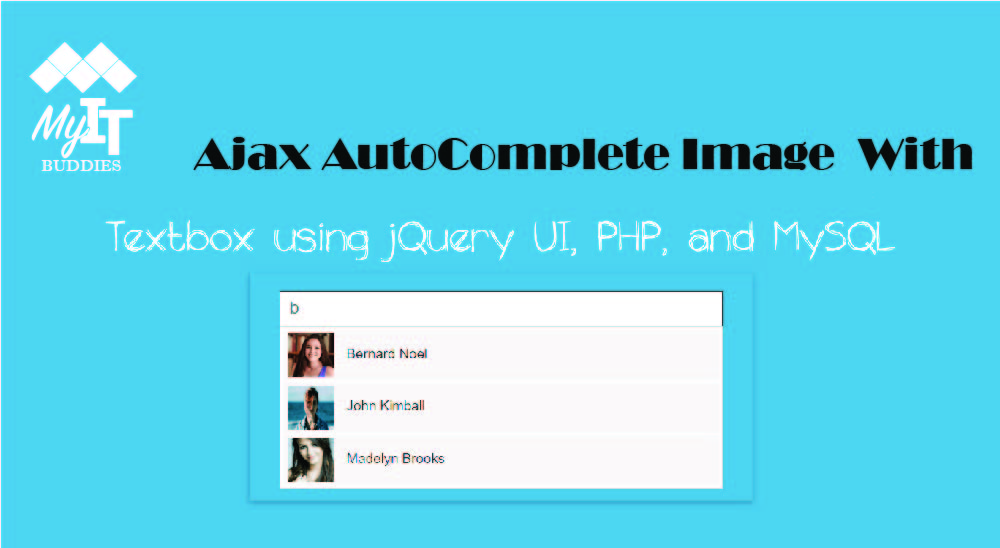

Most websites generally displayed a text box with a name, email address, or plain text. However, there are only a few websites on which the previously completed search result contains a display image. Here we create a text box for autocomplete that creates a list of search results that have previously been populated with images. To do this, we add a custom HTML tag to the jQuery UI auto-completion method by adding _renderItem. Here we use the __renderItem method. With this method, we paste custom HTML into the autocomplete text box.

Using the jQery user interface, we can easily implement the autocomplete widget for all input text fields. This autocomplete widget offers us many customization options that meet our needs. So here we have to display the image with the search result. Therefore, this _renderItem method is provided, which allows us to define a custom HTML code to display the image in the search list for automatic suggestions.


This add-in for the automatic completion of the jQuery user interface can be very easily integrated into our existing code. With the simple autocomplete () method, we can initialize this add-in in any defined input text field element. This add-on used the Ajax request to get data from the PHP script. We have to define the name of the PHP file in the source option. If you send an Ajax request to a PHP script and receive a response from the PHP script in JSON format, the search result on the website is automatically suggested without the website being updated. Therefore, this autocomplete widget provides automatic suggestions as a search result that the user can see under the autocomplete text box while searching for a value in the text box element. You can then complete the source with the online demo link.

Database

--
-- Database: `testing`
--

-- --------------------------------------------------------

--
-- Table structure for table `tbl_student`
--

CREATE TABLE `tbl_student` (
  `student_id` int(11) NOT NULL,
  `student_name` varchar(250) NOT NULL,
  `student_phone` varchar(20) NOT NULL,
  `image` varchar(255) NOT NULL
) ENGINE=MyISAM DEFAULT CHARSET=latin1;

--
-- Dumping data for table `tbl_student`
--

INSERT INTO `tbl_student` (`student_id`, `student_name`, `student_phone`, `image`) VALUES
(1, 'Pauline S. Rich', '412-735-0224', 'image_1.jpg'),
(2, 'Sarah C. White', '320-552-9961', 'image_2.jpg'),
(3, 'Samuel L. Leslie', '201-324-8264', 'image_3.jpg'),
(4, 'Norma R. Manly', '478-322-4715', 'image_4.jpg'),
(5, 'Kimberly R. Castro', '479-966-6788', 'image_5.jpg'),
(6, 'Elaine R. Davis', '701-685-8912', 'image_6.jpg'),
(7, 'Concepcion S. Gardner', '607-829-8758', 'image_7.jpg'),
(8, 'Patricia J. White', '803-789-0429', 'image_8.jpg'),
(9, 'Michael M. Bothwell', '214-585-0737', 'image_9.jpg'),
(10, 'Ronald C. Vansickle', '630-571-4107', 'image_10.jpg'),
(11, 'Clarence A. Rich', '904-459-3747', 'image_11.jpg'),
(12, 'Elizabeth W. Peterson', '404-380-9481', 'image_12.jpg'),
(13, 'Renee R. Hewitt', '323-350-4973', 'image_13.jpg'),
(14, 'John K. Love', '337-229-1983', 'image_14.jpg'),
(15, 'Teresa J. Rincon', '216-394-6894', 'image_15.jpg'),
(16, 'Erin S. Huckaby', '503-284-8652', 'image_16.jpg'),
(17, 'Brian A. Handley', '989-304-7122', 'image_17.jpg'),
(18, 'Michelle A. Polk', '540-232-0351', 'image_18.jpg'),
(19, 'Wanda M. Brown', '718-262-7466', 'image_19.jpg'),
(20, 'Phillip A. Hatcher', '407-492-5727', 'image_20.jpg'),
(21, 'Dennis J. Terrell', '903-863-5810', 'image_21.jpg'),
(22, 'Britney F. Johnson', '972-421-6933', 'image_22.jpg'),
(23, 'Rachelle J. Martin', '920-397-4224', 'image_23.jpg'),
(24, 'Leila E. Ledoux', '615-425-9930', 'image_24.jpg'),
(25, 'Darrell A. Fields', '708-887-1913', 'image_25.jpg'),
(26, 'Linda D. Carter', '909-386-7998', 'image_26.jpg'),
(27, 'Melva J. Palmisano', '630-643-8763', 'image_27.jpg'),
(28, 'Jessica V. Windham', '513-807-9224', 'image_28.jpg'),
(29, 'Karen T. Martin', '847-385-1621', 'image_29.jpg'),
(30, 'Jack K. McDonough', '561-641-4509', 'image_30.jpg'),
(31, 'John M. Williams', '508-269-9346', 'image_31.jpg'),
(32, 'Amelia W. Davis', '347-537-8052', 'image_32.jpg'),
(33, 'Gertrude W. Lawrence', '510-702-7415', 'image_33.jpg'),
(34, 'Michael L. Harris', '252-219-4076', 'image_34.jpg'),
(35, 'Casey A. Groves', '810-334-9674', 'image_35.jpg'),
(36, 'James H. Wilson', '865-259-6772', 'image_36.jpg'),
(37, 'James A. Wesley', '443-217-1859', 'image_37.jpg'),
(38, 'Armando C. Gay', '716-252-9230', 'image_38.jpg'),
(39, 'James M. Duarte', '402-840-0541', 'image_39.jpg'),
(40, 'Jason E. West', '360-610-7730', 'image_40.jpg'),
(41, 'Gloria H. Saucedo', '205-861-3306', 'image_41.jpg'),
(42, 'Paul T. Moody', '914-683-4994', 'image_42.jpg'),
(43, 'Sandra L. Williams', '310-335-1336', 'image_43.jpg'),
(44, 'Elaine T. Deville', '626-513-8306', 'image_44.jpg'),
(45, 'Robyn L. Spangler', '754-224-7023', 'image_45.jpg'),
(46, 'Sam A. Pino', '806-823-5344', 'image_46.jpg'),
(47, 'Joseph H. Marble', '201-917-2804', 'image_47.jpg'),
(48, 'Mark M. Bassett', '206-592-4665', 'image_48.jpg'),
(49, 'Edgar M. Billy', '978-365-0324', 'image_49.jpg'),
(50, 'Connie M. Yang', '815-288-5435', 'image_50.jpg');

--
-- Indexes for dumped tables
--

--
-- Indexes for table `tbl_student`
--
ALTER TABLE `tbl_student`
  ADD PRIMARY KEY (`student_id`);

--
-- AUTO_INCREMENT for dumped tables
--

--
-- AUTO_INCREMENT for table `tbl_student`
--
ALTER TABLE `tbl_student`
  MODIFY `student_id` int(11) NOT NULL AUTO_INCREMENT, AUTO_INCREMENT=71;

index.php

<!DOCTYPE html>
<html>
  <head>
    <title>Ajax AutoComplete Textbox With Image Using  jQuery UI  in PHP</title>
    <script src="https://ajax.googleapis.com/ajax/libs/jquery/3.1.0/jquery.min.js"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/jqueryui/1.12.1/jquery-ui.js"></script>
    <link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/jqueryui/1.12.1/jquery-ui.css" />
    <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.6/css/bootstrap.min.css" />
    <script src="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.7/js/bootstrap.min.js"></script>

    <style type="text/css">
      .ui-autocomplete-row
      {
        padding:8px;
        background-color: #f4f4f4;
        border-bottom:1px solid #ccc;
        font-weight:bold;
      }
      .ui-autocomplete-row:hover
      {
        background-color: #ddd;
      }
    </style>
  </head>
  <body>
    <br />
    <br />
    <div class="container">
      <h3 align="center">Ajax AutoComplete Textbox With Image Using  jQuery UI  in PHP</h3>
      <br />
      <br />
      <br />
      <div class="row">
        <div class="col-md-3">

        </div>
        <div class="col-md-6">
          <input type="text" id="search_data" placeholder="Enter Student name..." autocomplete="off" class="form-control input-lg" />
        </div>
        <div class="col-md-3">

        </div>
      </div>
    </div>
  </body>
</html>
<script>
  $(document).ready(function(){

    $('#search_data').autocomplete({
      source: "fetch.php",
      minLength: 1,
      select: function(event, ui)
      {
        $('#search_data').val(ui.item.value);
      }
    }).data('ui-autocomplete')._renderItem = function(ul, item){
      return $("<li class='ui-autocomplete-row'></li>")
        .data("item.autocomplete", item)
        .append(item.label)
        .appendTo(ul);
    };

  });
</script>

fetch.php

<?php

//fetch.php;

if(isset($_GET["term"]))
{
 $connect = new PDO("mysql:host=localhost; dbname=testing", "root", "");

 $query = "
 SELECT * FROM tbl_student
 WHERE student_name LIKE '%".$_GET["term"]."%'
 ORDER BY student_name ASC
 ";

 $statement = $connect->prepare($query);

 $statement->execute();

 $result = $statement->fetchAll();

 $total_row = $statement->rowCount();

 $output = array();
 if($total_row > 0)
 {
  foreach($result as $row)
  {
   $temp_array = array();
   $temp_array['value'] = $row['student_name'];
   $temp_array['label'] = '<img src="images/'.$row['image'].'" width="70" />&nbsp;&nbsp;&nbsp;'.$row['student_name'].'';
   $output[] = $temp_array;
  }
 }
 else
 {
  $output['value'] = '';
  $output['label'] = 'No Record Found';
 }

 echo json_encode($output);
}

?>
